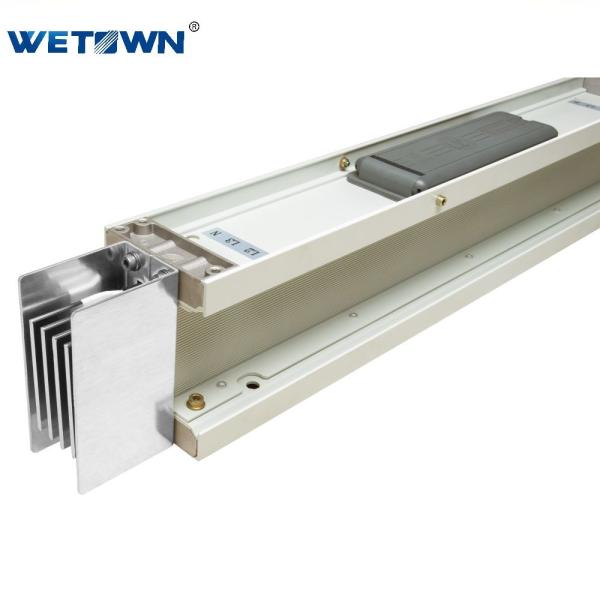

    IEC 61439-6 KEMA 690V 250A LV Compact Electrical Busway System Copper bar/Aluminum bar

    Ask Lasest Price
    Brand Name : WETOWN
    Model Number : LV
    Certification : UL,KEMA,ASTA,CE,GOST-R,CEDIT,TUV
    Price : Negotiable
    Delivery Time : 20 working days after confirmation of all technical data and advance payment
    Supply Ability : 300 Pieces per Month
    • Product Details
    • Company Profile

    IEC 61439-6 KEMA 690V 250A LV Compact Electrical Busway System Copper bar/Aluminum bar

    IEC 61439-6 KEMA 690V 250A LV Compact Busduct Copper bar/Aluminum bar

    The attachment of LV series busway system is Tap—Off Box:

    • The plug-in box can provide 16A ~ 1600A tapping current with 7 different sizes.
    • Designed with support positioning device to ensure accurate positioning and support the weight of the plug-in box to protect the pins from external forces.
    • Designed with the double interlocking mechanism, and the power-on state cannot be inserted and removed, thus ensuring the personal safety of the operator.
    • Any type of circuit breaker can be equipped in the box,the breakers type and brand are optional for customer.

    Why choose wetown:

    • Reliable high quality conductors,electrolytic copper,copper bar purity above 99.90%
    • More reliable IP with two pieces of housing design.
    • High corrosion resistance casing.
    • Intelligent design with smart devive.
    • Smart joint design-temperature intelligent system.
    • Unique error-proof design.

    NO.ItemTech data
    1Conductor TypeCopper/Aluminium Conductor
    2Rated Current(A)250-6300A
    3Frequency(Hz)50Hz/60Hz
    4Rated Voltage(V)1000V
    5IPIP54/IP65/IP66
    6Product SeriesLV Series Compact Busway
    7Design CriteriaIEC61439-6
    8Product TypeLow Voltage Busway
    9CertificationUL,KEMA,ASTA,CE,GOST-R,CEDIT,TUV
    10Attachmentplug-in box
