Brand Name : | WETOWN |
Model Number : | LB |
Certification : | UL,KEMA,ASTA,CE,GOST-R,CEDIT,TUV |
Price : | Negotiable |
Delivery Time : | 20 working days after confirmation of all technical data and advance payment |
Supply Ability : | 300 Pieces per Month |

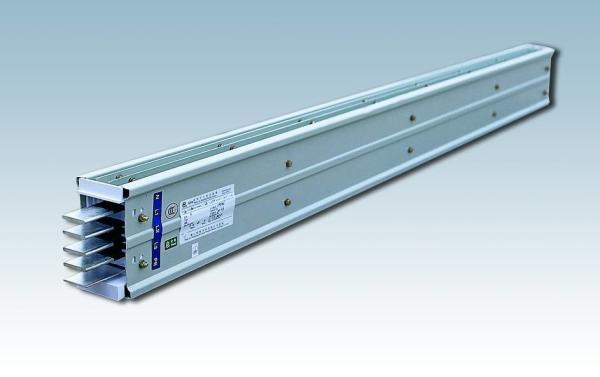

LB Low Power Busway , 50Hz , 60Hz , 690V
LB Low Power Busway is applicated to the power supply of fluorescent lamps, mercury lamps and other lighting equipment in shopping malls, supermarkets, underground garages and other places.
LB low power air insulated busbar system is a new type closed power transmission system, easy for installation and utility, applicable for small & medium power distribution such as supermarket, shopping malls.
Code | Current (A) | Height H(mm) | |
LVC | LVA | ||
2 | 250 | / | 103 |
4 | 400 | 103 | 113 |
6 | 630 | 103 | 128 |
8 | 800 | 113 | 143 |
10 | 1000 | 128 | 168 |
12 | 1250 | 153 | 203 |
16 | 1600 | 183 | 242 |
20 | 2000 | 223 | 303 |
25 | 2500 | 273 | 392 |
32 | 3200 | 352 | 472 |
40 | 4000 | 432 | 592 |
50 | 5000 | 532 | / |
63 | 6300 | 701 | / |
