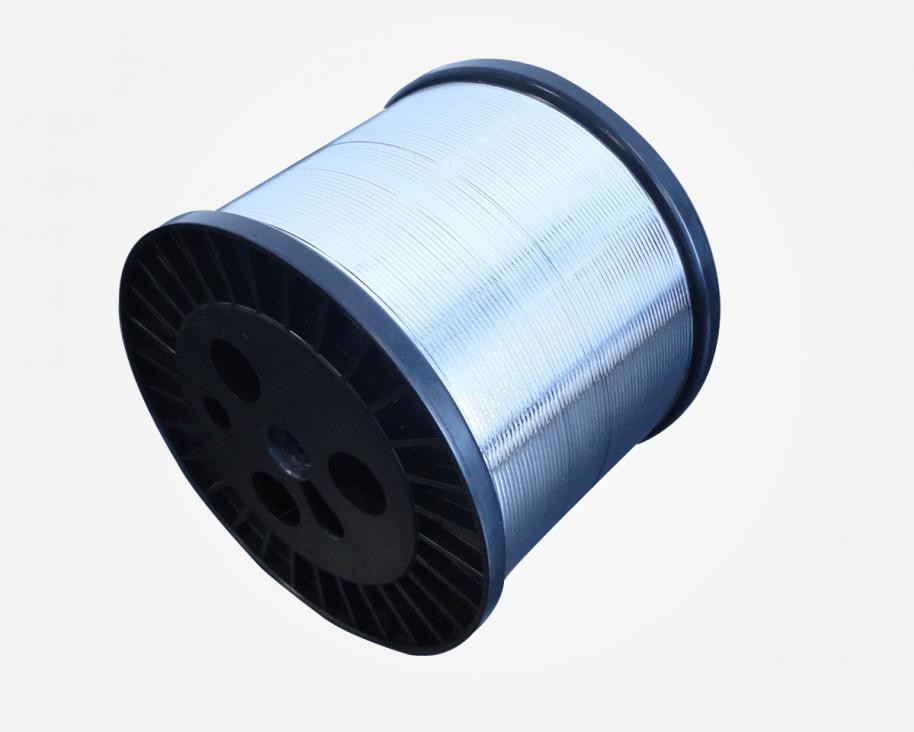

Tin Plated 8.0mm 0.6mm Interlinked PV Ribbon

Interlinked Ribbon , thickness : 0.08 - 0.6mm width : 0.7 - 8.0mm

The photovoltaic welding strip is specially developed for the solar modules. Wetown ensures the control of raw materials, with building a complete production chain.

Interlinked Ribbon is mainly soldered to the main grid line of the cell, it is used to connect the solar cell, collect and transmit the Photovoltaic modules current.

Why choose wetown:

Can be customized.
Stable quality.
Standard production chain and automatic line ensure fast delivery.
Passed SGS testing certification, fully in line with the European ROHS directive standards.

Width (mm)	Spec.	Copper base thickness	Tin thickness	Width Tolerance(mm)	Thickness Tolerance(mm)	Yield strength(MPa)	Tensile strength(MPa)	Extensibility (%)	Bending (mm/m)


1.2	0.18x1.2	0.13	0.025	±0.05	±0.01	＜90	＞ 150	＞25	＜5
	0.20x1.2	0.15	0.025	±0.05	±0.01	＜90	＞ 150	＞25	＜5
	0.23x1.2	0.18	0.025	±0.05	±0.01	＜90	＞ 150	＞25	＜5
	0.25x1.2	0.2	0.025	±0.05	±0.01	＜90	＞ 150	＞25	＜5
	0.27x1.2	0.22	0.025	±0.05	±0.01	＜90	＞ 150	＞25	＜5
1.3	0.23x1.3	0.18	0.025	±0.05	±0.01	＜90	＞ 150	＞25	＜5
	0.25x1.3	0.2	0.025	±0.05	±0.01	＜90	＞ 150	＞25	＜5
	0.27x1.3	0.22	0.025	±0.05	±0.01	＜90	＞ 150	＞25	＜5
1.5	0.18x1.5	0.13	0.025	±0.05	±0.01	＜90	＞ 150	＞25	＜5
	0.20x1.5	0.15	0.025	±0.05	±0.01	＜90	＞ 150	＞25	＜5
	0.23x1.5	0.18	0.025	±0.05	±0.01	＜90	＞ 150	＞25	＜5
	0.25x1.5	0.2	0.025	±0.05	±0.01	＜90	＞ 150	＞25	＜5
	0.27x1.5	0.22	0.025	±0.05	±0.01	＜90	＞ 150	＞25	＜5
1.6	0.18x1.6	0.13	0.025	±0.05	±0.01	＜90	＞ 150	＞25	＜5
	0.20x1.6	0.15	0.025	±0.05	±0.01	＜90	＞ 150	＞25	＜5
	0.23x1.6	0.18	0.025	±0.05	±0.01	＜90	＞ 150	＞25	＜5
	0.25x1.6	0.2	0.025	±0.05	±0.01	＜90	＞ 150	＞25	＜5
	0.27x1.6	0.22	0.025	±0.05	±0.01	＜90	＞ 150	＞25	＜5
	0.30x1.6	0.25	0.025	±0.05	±0.01	＜90	＞ 150	＞25	＜5
1.8	0.18x1.8	0.13	0.025	±0.05	±0.01	＜90	＞ 150	＞25	＜5
	0.20x1.8	0.15	0.025	±0.05	±0.01	＜90	＞ 150	＞25	＜5
	0.23x1.8	0.18	0.025	±0.05	±0.01	＜90	＞ 150	＞25	＜5
	0.25x1.8	0.2	0.025	±0.05	±0.01	＜90	＞ 150	＞25	＜5
	0.27x1.8	0.22	0.025	±0.05	±0.01	＜90	＞ 150	＞25	＜5
	0.30x1.8	0.25	0.025	±0.05	±0.01	＜90	＞ 150	＞25	＜5
2	0.18x2.0	0.13	0.025	±0.05	±0.01	＜90	＞ 150	＞25	＜5
	0.20x2.0	0.15	0.025	±0.05	±0.01	＜90	＞ 150	＞25	＜5
	0.23x2.0	0.18	0.025	±0.05	±0.01	＜90	＞ 150	＞25	＜5
	0.25x2.0	0.2	0.025	±0.05	±0.01	＜90	＞ 150	＞25	＜5
	0.27x2.0	0.22	0.025	±0.05	±0.01	＜90	＞ 150	＞25	＜5
	0.30x2.0	0.25	0.025	±0.05	±0.01	＜90	＞ 150	＞25	＜5
