Insulated flexible busbar 3500V AC UL94V-0 2m, 3m PVC -40 up to 135℃

Insulated Flexible Copper Busbar-available in standard 2 or 3 meter lengths and custom cut lengths.

Copper flexible busbar is formed with multiple layers of thin electrolytic copper and provided with black insulation according to specifications required. Design can be fully customized upon our customers requirements.

Features

• Flexibar is formed with multiple layers of thin electrolytic copper, available in plain or tin plated.
• Flexibar connections are made by punching directly through the laminates. There are no lugs to purchase, helping to eliminate faulty connection problems and making installation simpler and faster.
• The insulation is a high-resistance, self-extinguishing PVC.
• Easily bent,folded and twisted, flexible busbar improves assembly flexibility, shortening connections and decreasing footprint.
• ROHS compliant and UL94V-0 standard.

1. Copper layer thickness from 0.5 to 1mm.

2. High flexibility & conductivity ETP grade copper (Cu) with a minimum copper content of 99.90%, can be tin plated on request.

3.Working temperature: -40 up to 135℃

4. Voltage: 3500V AC.

5. Flame retardant: UL94V-0.

6. High elongation value and mechanical resistance.

7. High current withstanding capacity and high conductivity.

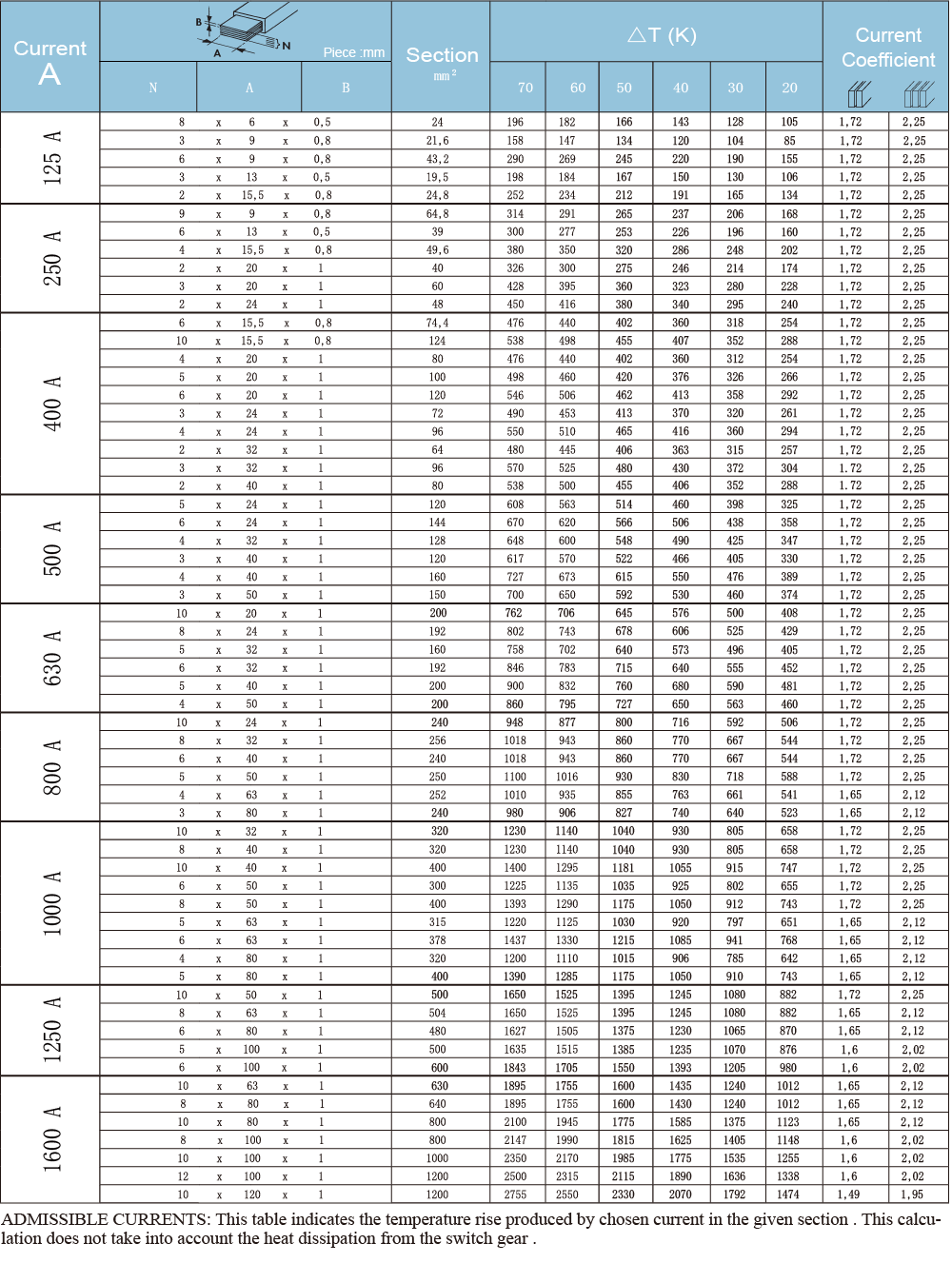

8. Cross-sectional area: 24mm² to 1200mm².

9. Holes are punched through the laminated foils and can be round or oblong on request.
